Model S-29

Snubbing Equipment Specifications:

  • BOPs: 5000 Psi [35 Mpa] x 7.062” [179mm] stripping stack, consisting of one annular preventer and one Academy Type A single gate ram (c/w integral equalize system) separated by a bleed off/equalize spool with hydraulically actuated plug valves. Integrally mounted Baker BAP chokes
  • Jack: 118” [3.0 m] stroke with 6″ by 4″ cylinders to produce a snub force of 94,200 lbs [23,000 daN], complete with hydraulic brake for added safety when pulling pipe. 4.5” [114mm] tubing tongs with hydraulic backup
  • Snubsmart: Unit is equipped with the Snubsmart safety system with lights and beacons indicating ram position and a throttle control to limit pulling power of rig
  • Onboard pipe handling winch: Rated to 500 Lbs [227 kg]
  • Slips: Snubco snubbing slips, Snubco “TH” heavy slips
  • 6,000 lb rotary unit
  • 100% certified: The unit has complete engineering and material certifications for all structural or pressurecontaining components. All wellbore pressurecontaining components meet N.A.C.E. specifications
  • Accumulator: 33 Gal [124 L] with nitrogen backup system
  • B.H.A. handling space: 85” [2.17 m]
  • Lubricating space: 96” [ 2.46 m]
  • Snub force: 50,000 lbs [23,000 daN]

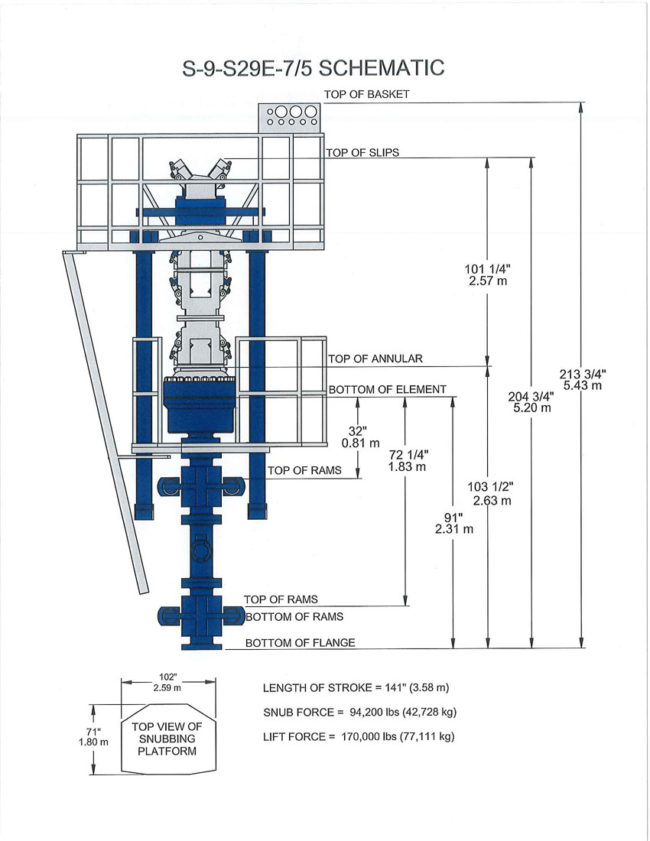

  • Rigged up height: 167” [4.24 m] to slips; 191” [4.85 m] to top of rails
  • Slipsmart System:
    • Incorporates design features such that a positive, measurable and recordable transfer of load [can be? ]made between slips
    • Is designed with (electro/hydraulic) interlock(s) that will not allow accidental release of pipe, at any time, in either heavy or light mode of operation
    • Visual confirmation of slip function and load transfer
    • Bypass of the Slipsmart to enable operations such as running BHA assemblies is possible, but it is controlled by an adequate procedure and supervision
    • The system uses highspeed electric wireless actuators that attach easily to any existing hydraulic system. Information is displayed on the base station and slave screen
